The back gauge is one of the most critical components on any CNC press brake. While operators often focus on tonnage, stroke length, and tooling selection, it is the back gauge that ultimately determines whether each bend lands in the right place. A poorly calibrated or inadequate back gauge system can turn an otherwise precise machine into a source of scrap parts and wasted time.
In this comprehensive guide, we'll explain exactly what a press brake back gauge does, explore the different types available, break down axis configurations from basic 2-axis to advanced 6-axis systems, and walk you through calibration and troubleshooting procedures. Whether you're evaluating a new press brake purchase or optimizing an existing machine, understanding the back gauge is essential for achieving consistent, high-quality bends.
What Is a Press Brake Back Gauge?
A press brake back gauge is a precision positioning system mounted behind the lower die on a press brake. Its primary function is to serve as an adjustable reference stop — the operator or automated feeding system pushes the sheet metal against the back gauge fingers, positioning the workpiece so that the bend line aligns exactly where intended.
Think of the back gauge as a "movable wall" that defines how far the sheet metal extends past the die center. This distance directly determines the flange length — the dimension from the edge of the sheet to the bend line. In batch production, the back gauge ensures every single part comes out with identical dimensions, eliminating reliance on operator judgment or manual measurement.
💡 Why the Back Gauge Matters
- Dimensional Consistency: Guarantees identical flange lengths across hundreds or thousands of parts in batch production
- Reduced Setup Time: CNC back gauges store positions in programs, allowing instant recall for repeat jobs
- Material Savings: Precise positioning minimizes scrap from incorrectly placed bends
- Operator Safety: Eliminates the need for operators to hold or manually position sheets near the die
- Complex Part Capability: Multi-axis back gauges enable bending of parts with multiple flanges and varying geometries
Types of Press Brake Back Gauges
Back gauge systems range from simple manual stops to fully automated CNC-controlled assemblies. The right choice depends on your production volume, part complexity, and budget.
Manual Back Gauge
Manual back gauges are adjusted by hand using a handwheel, lead screw, or direct physical repositioning of stop blocks. The operator measures the desired position, moves the gauge, and locks it in place. While affordable and simple, manual back gauges are slow to adjust and prone to human error. They are suitable only for low-volume shops or very simple parts.
Motorized (NC) Back Gauge
Motorized back gauges use electric motors to drive the positioning mechanism, typically controlled by a simple NC (Numerical Control) system. The operator inputs the desired X-axis position, and the motor moves the back gauge automatically. This type offers faster setup than manual systems and reasonable accuracy, making it a cost-effective upgrade for medium-volume production.
CNC Back Gauge
CNC (Computer Numerical Control) back gauges represent the current standard for professional fabrication. Driven by high-precision servo motors and ball screws, they offer:
- Multi-axis control (X, R, Z1/Z2, and beyond)
- Program storage for instant recall of complex bending sequences
- Automatic positioning between bending steps — no operator intervention needed
- Positioning accuracy of ±0.01 mm with high-resolution encoders
- Integration with controllers from DELEM, ESA, CYBELEC, and other leading brands
| Feature | Manual | Motorized (NC) | CNC |
|---|---|---|---|
| Positioning Accuracy | ±0.5 mm | ±0.1 mm | ±0.01 mm |
| Axes | X only | X, R | X, R, Z1/Z2, X1/X2 |
| Positioning Speed | Slow (manual) | Medium (~200 mm/s) | Fast (up to 500 mm/s) |
| Program Storage | No | Limited | Unlimited |
| Best For | Low volume, simple parts | Medium volume production | High volume, complex parts |
Back Gauge Axes Explained
One of the most common questions when evaluating a press brake is: "How many axes do I need?" The answer depends on the complexity of the parts you're bending. Here's a detailed breakdown of each axis:
X-Axis (Depth / Flange Length)
The X-axis is the fundamental back gauge axis. It controls the horizontal (front-to-back) position of the back gauge relative to the bending line. This directly determines the flange length of the bent part. Every press brake — from the simplest manual machine to the most advanced CNC system — has at least an X-axis.
R-Axis (Vertical Height)
The R-axis controls the vertical (up-down) movement of the back gauge stop fingers. This is essential for multi-step bending operations where previously formed flanges could collide with the back gauge. By raising or lowering the fingers between steps, the R-axis enables complex parts to be bent in a single setup without interference.
Z1/Z2 Axes (Lateral Positioning)
The Z-axes control the lateral (left-right) positioning of individual stop fingers along the back gauge bar. With independent Z1 and Z2 control, each finger can be positioned at different horizontal locations. This is critical for:
- Bending parts with non-parallel edges or tapered flanges
- Positioning fingers to avoid cutouts, notches, or holes near the bend line
- Supporting narrow or irregularly shaped parts with optimal finger placement
X1/X2 Axes (Independent Depth)
In a 6-axis configuration, the X-axis splits into X1 and X2 — two independently controlled depth positions for the left and right stop fingers. This enables bending of trapezoidal or offset parts where the left flange dimension differs from the right, all without manual adjustment.
✅ How to Choose the Right Axis Count
- 2-axis (X+R): Sufficient for most standard bending — flat sheets with uniform flanges
- 4-axis (X+R+Z1+Z2): Recommended for job shops handling varied part geometries
- 6-axis (X1+X2+R1+R2+Z1+Z2): Required for complex parts like tapered enclosures, asymmetric brackets, and multi-step formed components

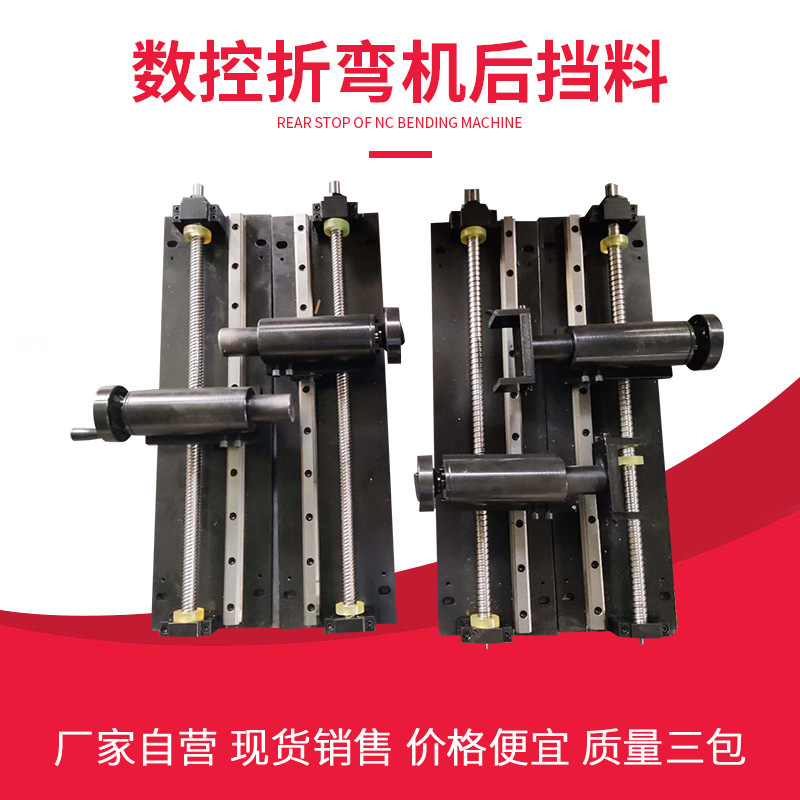

Key Components of a CNC Back Gauge System
Understanding the mechanical components helps with both purchasing decisions and maintenance planning. Here are the critical parts of a modern CNC back gauge:
Ball Screws
Ball screws convert the rotary motion of servo motors into precise linear movement. They are the backbone of X-axis positioning, offering high accuracy, low friction, and minimal backlash. Premium back gauge systems use ground ball screws (C3 or C5 grade) for repeatability under ±0.01 mm.
Linear Guides
Linear guide rails ensure smooth, stable, and straight movement of the back gauge carriage. They bear the load of the back gauge assembly and maintain alignment even under the vibration forces generated during bending. High-quality linear guides from brands like THK, HIWIN, or Rexroth are markers of a well-built machine.
Servo Motors
AC servo motors drive each controlled axis. They offer rapid acceleration, precise speed control, and holding torque for maintaining position. The motor's encoder provides feedback to the CNC controller, enabling closed-loop position verification.
Stop Fingers
Stop fingers (or positioning fingers) are the components that physically contact the sheet metal. Made from hardened steel, they come in various profiles — flat-faced for standard work, roller-type for easy sheet sliding, and adjustable types for maximum versatility. Finger condition directly affects positioning accuracy, so regular inspection is essential.
How to Calibrate a Press Brake Back Gauge
Even the best CNC back gauge drifts over time due to mechanical wear, thermal expansion, and accumulated vibration effects. Regular calibration is the key to maintaining bending accuracy. Here's a step-by-step procedure:
Step 1: Safety Preparation
Power off the press brake and engage the lockout/tagout procedure. Clear the work area of tools and materials. Wear appropriate PPE including safety glasses and gloves.
Step 2: Clean All Components
Remove chips, dust, and debris from the back gauge rail, linear guides, ball screw, and optical encoder (if equipped). Contamination is the #1 cause of gradual positioning drift.
Step 3: Check Ram Parallelism
Before calibrating the back gauge, verify that the press brake ram is parallel to the bed. Use a dial indicator mounted on a magnetic base, sweeping across the ram face. Non-parallel ram alignment will cause inconsistent bending regardless of back gauge accuracy.
Step 4: Set Calibration Reference
Place precision calibration gauge bars across the die opening. Jog the ram down slowly until the punch seats into the V-notch of the gauge bars. These bars provide a known reference plane for measuring back gauge position.
Step 5: Measure and Adjust Finger Position
Using precision calipers or a calibrated measuring tool, measure the distance from each stop finger to the front edge of the lower die. Compare this measurement to the CNC controller's displayed position. Adjust each finger until the physical measurement matches the programmed value. Verify at multiple points along the back gauge bar to ensure parallelism.
Step 6: Verify with Test Bends
Run a series of test bends using a consistent material sample. Measure the resulting flange lengths and compare them to the programmed dimensions. Fine-tune the back gauge offset in the CNC controller if systematic deviations are found. Document the calibration results and date for your maintenance records.
⚠️ When to Recalibrate
- Routine: Every 6 months or per manufacturer's recommendation
- After collision: If fingers or the back gauge bar suffer any impact
- After finger replacement: New fingers may differ slightly in thickness
- Dimensional drift: When finished parts begin showing dimensional variation
- After relocation: Moving the press brake can shift alignment
Common Back Gauge Problems & Solutions
When your back gauge isn't performing as expected, systematic troubleshooting saves time and money. Here are the most common issues and their solutions:
| Symptom | Likely Cause | Solution |
|---|---|---|
| Inconsistent flange lengths | Ball screw backlash or worn linear guides | Check and adjust ball screw preload; replace worn guides |
| Position error alarm | Encoder malfunction or loose coupling | Inspect encoder connections; tighten motor-to-screw coupling |
| Jerky or uneven movement | Debris on guides, insufficient lubrication | Clean and re-lubricate all linear guides and ball screws |
| Back gauge doesn't move | Servo motor fault, blown fuse, or e-stop engaged | Check servo drive error codes; verify electrical connections and safety circuit |
| Excessive noise during movement | Worn bearings or misaligned ball screw | Replace bearings; check screw alignment and end support |
| Position drift after power cycle | Lost home position reference | Re-home (reference) all axes; check origin switch function |
Back Gauge Maintenance Best Practices
Preventive maintenance extends the life of your back gauge system and prevents costly downtime. Follow these practices as part of your regular press brake maintenance routine:
- Daily: Wipe down stop fingers and visually inspect for damage or loose fasteners
- Weekly: Clean linear guides and check for smooth movement across the full travel range
- Monthly: Lubricate ball screws and linear guide carriages per manufacturer specifications
- Quarterly: Check servo motor and drive connections; verify encoder function
- Bi-annually: Full calibration check (see calibration section above)
- As needed: Replace worn stop fingers, damaged encoder cables, or degraded timing belts
✅ Pro Tip: Keep a Maintenance Log
Document every calibration, component replacement, and anomaly in a dedicated log. This data helps predict wear patterns, justify replacement parts orders, and provides evidence for warranty claims. Many CNC controllers can export usage logs — use them.
How to Choose the Right Back Gauge for Your Press Brake
When selecting a press brake, the back gauge specification is often where cost and capability intersect. Here are the key factors to consider:
- Part Complexity: Simple L-brackets need only X+R. Multi-bend enclosures and boxes require Z1/Z2 at minimum.
- Production Volume: Higher volumes justify CNC automation — the time saved per part multiplies across thousands of pieces.
- Tolerance Requirements: Aerospace and precision sheet metal work demands ±0.01 mm back gauge accuracy with high-grade ball screws and encoders.
- Material Handling: Heavy or large sheets benefit from back gauges with support arms or roller-type fingers for easier positioning.
- Controller Integration: Ensure the back gauge is compatible with your preferred CNC controller (DELEM, ESA, CYBELEC) for seamless programming and operation.
- Future-Proofing: If your part mix is evolving, invest in more axes now rather than retrofitting later — retrofits typically cost more than factory-installed options.
At Rucheng Technology, our CNC press brakes come equipped with high-precision back gauge systems featuring servo-driven ball screws, hardened linear guides, and integration with industry-leading CNC controllers. Contact our engineering team to discuss the optimal back gauge configuration for your specific production requirements.
Frequently Asked Questions
What is a press brake back gauge?
A press brake back gauge is a precision positioning system mounted behind the lower die. It serves as an adjustable reference stop that the operator pushes sheet metal against before bending, ensuring the bend line is in the correct position for accurate and repeatable flange lengths.
How many axes does a CNC press brake back gauge have?
Modern CNC press brake back gauges typically have 2 to 6 axes. A basic system has X (depth) and R (height). More advanced systems add Z1/Z2 (lateral positioning of fingers) and X1/X2 (independent left/right depth). Higher axis counts enable more complex part geometries without manual adjustment.
How often should I calibrate my press brake back gauge?
Calibrate the back gauge at least twice per year as part of routine maintenance. Additionally, recalibrate after any collision, after replacing stop fingers, when noticing dimensional inconsistencies in bent parts, or when the machine is relocated.
What causes back gauge positioning errors?
Common causes include ball screw backlash or wear, encoder malfunction, loose coupling between motor and screw, debris on linear guides, servo motor faults, and incorrect CNC parameter settings. Regular maintenance and calibration can prevent most positioning errors.
Can I upgrade a manual back gauge to CNC?
Yes, many press brakes can be retrofitted with CNC back gauge systems. This typically involves adding servo motors, ball screws, linear guides, and a CNC controller. The upgrade significantly improves positioning accuracy, repeatability, and production speed. Consult your machine manufacturer for compatible retrofit kits.
What is the difference between X-axis and R-axis on a back gauge?
The X-axis controls the horizontal (front-to-back) position of the back gauge, determining the flange length of the bend. The R-axis controls the vertical (up-down) position of the stop fingers, allowing them to clear previously formed flanges or adjust to different die heights during multi-step bending sequences.
