Understanding Press Brake Compensation
When bending long workpieces on a CNC press brake, the machine bed tends to deflect under pressure, resulting in uneven bending angles across the length of the part. Compensation systems counteract this deflection to ensure uniform bend angles.
Mechanical Compensation (Crowning)

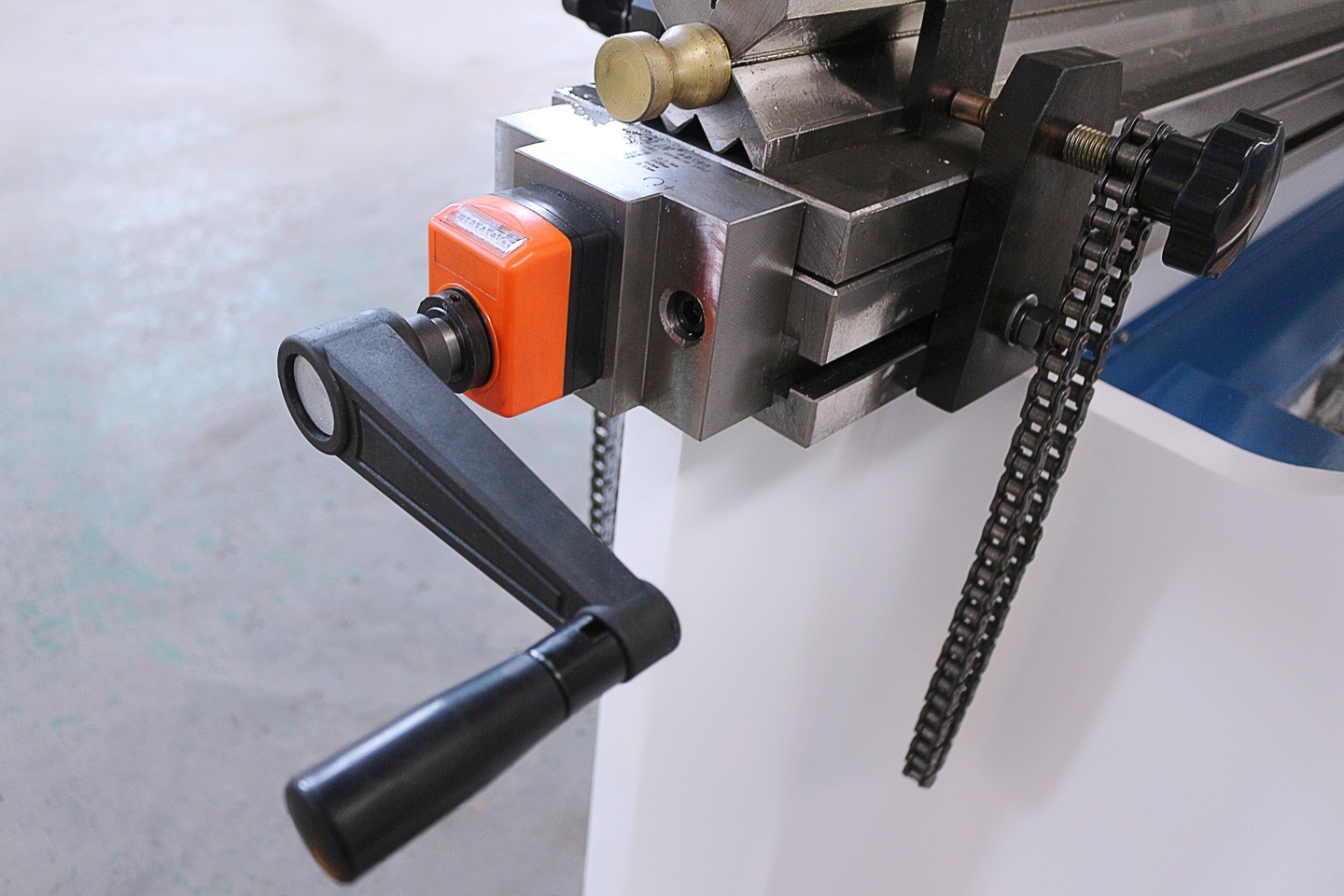

Mechanical compensation, also known as crowning, uses wedge-shaped blocks that can be adjusted to create a convex curve in the bed. This pre-compensates for the deflection that will occur during bending.
- Advantages:
- Simple, reliable mechanism with few moving parts
- Lower initial cost compared to hydraulic systems
- Minimal maintenance requirements
- No hydraulic fluid or electrical components to maintain
- Disadvantages:
- Manual adjustment required for different workpiece lengths
- Less precise than hydraulic compensation
- Cannot be adjusted during the bending process
Hydraulic Compensation
Hydraulic compensation systems use hydraulic cylinders positioned along the bed to actively compensate for deflection. The CNC control calculates the required compensation based on material properties, bend length, and tonnage.
- Advantages:
- Automatic compensation adjusted for each bend
- Higher precision and consistency
- Can compensate for various workpiece lengths without manual adjustment
- CNC-controlled for optimal results
- Disadvantages:
- Higher initial investment cost
- More complex system requiring regular maintenance
- Additional hydraulic components that may need service
Which Compensation System to Choose?
Your choice depends on several factors:
- Production Volume: High-volume operations benefit from the automation of hydraulic compensation
- Part Variety: Frequent changes in part length favor hydraulic systems
- Precision Requirements: Tight tolerances require hydraulic compensation
- Budget: Mechanical compensation offers good value for simpler applications
