Sheet metal fabrication is one of the most fundamental manufacturing processes in modern industry. From the enclosures of electrical panels to the structural frames of buildings, from automotive body panels to aircraft fuselages — virtually every manufactured product relies on sheet metal components at some stage of its production.
Yet for those new to the field — whether equipment buyers, production managers, or engineering students — the range of processes, machines, and materials can be overwhelming. This guide breaks down everything you need to know: what sheet metal fabrication is, how each process works, what machines are used, and how to choose the right equipment for your operation.
Quick Overview: Sheet metal fabrication transforms flat metal sheets into finished components through a series of processes — cutting, forming, joining, and finishing. The primary machines involved are shearing machines, CNC press brakes, laser cutters, and plate rolling machines.
What Is Sheet Metal Fabrication?
Sheet metal fabrication refers to a set of manufacturing processes that convert flat metal sheets into structural parts, enclosures, brackets, frames, and other precision components. The input material — sheet metal — is typically a flat, thin piece of metal with a uniform thickness ranging from 0.4 mm (thin gauge for electronics) up to 25 mm or more (heavy plate for industrial structures).
The fabrication process generally follows this sequence:
- Design & engineering — CAD drawings define the part geometry, tolerances, and material specifications
- Cutting — raw sheet is cut to approximate size and shape
- Forming — the flat blank is bent, rolled, or pressed into the required 3D shape
- Joining — individual parts are welded, riveted, or fastened together
- Finishing — surface treatment protects against corrosion and improves appearance
Each stage requires specific equipment and operator skill. Below we examine each process in detail.
Common Sheet Metal Materials
Selecting the right material is the first decision in any fabrication project. The most commonly used sheet metals are:
| Material | Key Properties | Typical Applications |
|---|---|---|
| Mild Steel (Q235/A36) | High strength, excellent weldability, low cost, susceptible to rust | Structural frames, machine enclosures, brackets, automotive parts |
| Stainless Steel (304/316) | Corrosion resistant, hygienic, harder to bend, higher cost | Food processing equipment, kitchen ware, medical devices, chemical tanks |
| Aluminum (5052/6061) | Lightweight, corrosion resistant, good thermal conductivity | Aerospace, electronics enclosures, automotive panels, HVAC |
| Galvanized Steel | Zinc-coated steel with improved rust resistance, cost-effective | HVAC ductwork, outdoor structures, electrical cabinets |
| Copper / Brass | Excellent electrical conductivity, antimicrobial, decorative | Electrical components, plumbing fittings, decorative panels |
For most general fabrication work — machine guards, cabinets, frames — mild steel offers the best balance of strength, machinability, and cost. Stainless steel and aluminum are specified when weight or corrosion resistance is a priority.
Sheet Metal Cutting Processes
Cutting is the first processing step — transforming a large sheet into a blank that matches the required dimensions and outline. There are five main cutting methods, each suited to different applications:
1. Shearing (Guillotine Cutting)
A hydraulic shearing machine uses two hardened steel blades — one fixed, one moving — to slice through sheet metal in a straight line, similar to scissors. It is the fastest and most economical cutting method for rectangular blanks.
- ✅ Very fast — ideal for high-volume straight cuts
- ✅ Low operating cost, no consumables
- ✅ Handles material from 0.5 mm to 20+ mm thick
- ❌ Straight cuts only — no curves or complex shapes
- ❌ Slight edge distortion (rollover) on cut edge
Shearing machines are a staple in every fabrication shop. For a detailed comparison of swing-beam vs. guillotine types, see our complete shearing machine guide.

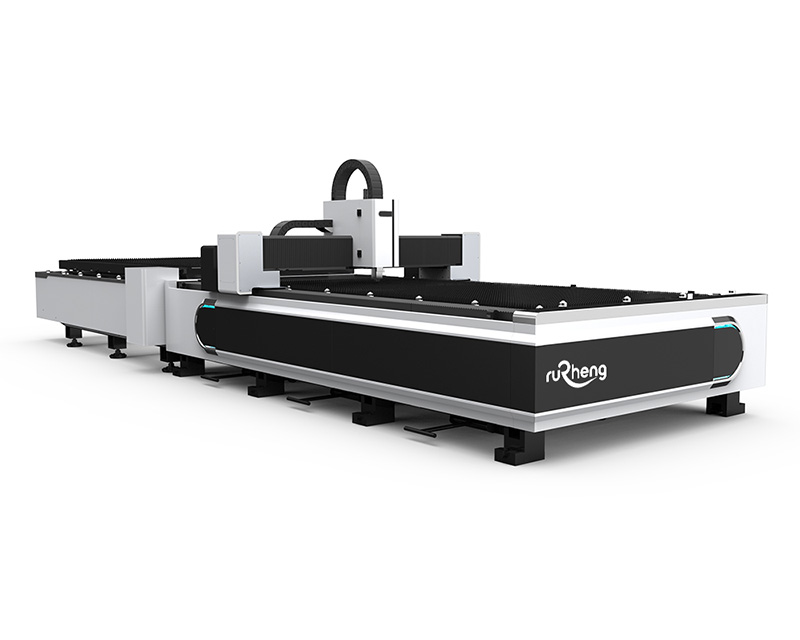

2. Laser Cutting
Fiber laser cutters focus an intense laser beam on the metal surface, melting and vaporizing material along the programmed path. Laser cutting offers excellent precision (±0.05 mm) and can cut virtually any 2D shape — including curves, slots, holes, and complex contours.
- ✅ High precision, tight tolerances
- ✅ No tooling required — shape changes are programmed
- ✅ Clean edge quality, minimal burr
- ❌ Higher equipment cost than shearing
- ❌ Speed decreases with thicker materials
For buyers evaluating fiber laser systems, our fiber laser cutting machine buying guide covers power selection, bed size, and key specifications.
3. Plasma Cutting
Plasma cutting uses an ionized gas jet at temperatures exceeding 20,000°C to cut through electrically conductive metals. It is especially effective for cutting thick steel plate (6 mm to 50+ mm) where laser cutting becomes slow or impractical.
- ✅ Excellent for thick plate cutting
- ✅ Lower equipment cost than laser
- ❌ Wider kerf (cut width) than laser
- ❌ More heat-affected zone, rougher edge
4. Punching / Stamping
CNC punch presses use a punch-and-die set to create holes, slots, and cutouts at high speed. Turret punch presses with multiple tool stations can rapidly produce complex hole patterns without needing to change tools manually — ideal for enclosures and panels with many holes.
- ✅ Very fast for repetitive hole patterns
- ✅ Low per-hole cost at volume
- ❌ Tool cost for each new shape
- ❌ Limited to thinner materials (typically under 6 mm)
5. Waterjet Cutting
Waterjet cutting uses a high-pressure stream of water mixed with abrasive particles to cut through virtually any material — including metals, stone, glass, and composites — without generating heat. This makes it ideal for materials that cannot tolerate thermal distortion.
- ✅ No heat-affected zone — suitable for heat-sensitive materials
- ✅ Can cut virtually any material
- ❌ Slowest cutting method
- ❌ High operating cost (abrasive consumption)
Sheet Metal Forming Processes
Once the blank is cut, forming operations change its shape by bending, rolling, or pressing. Unlike cutting (which removes material), forming reshapes the metal through plastic deformation.

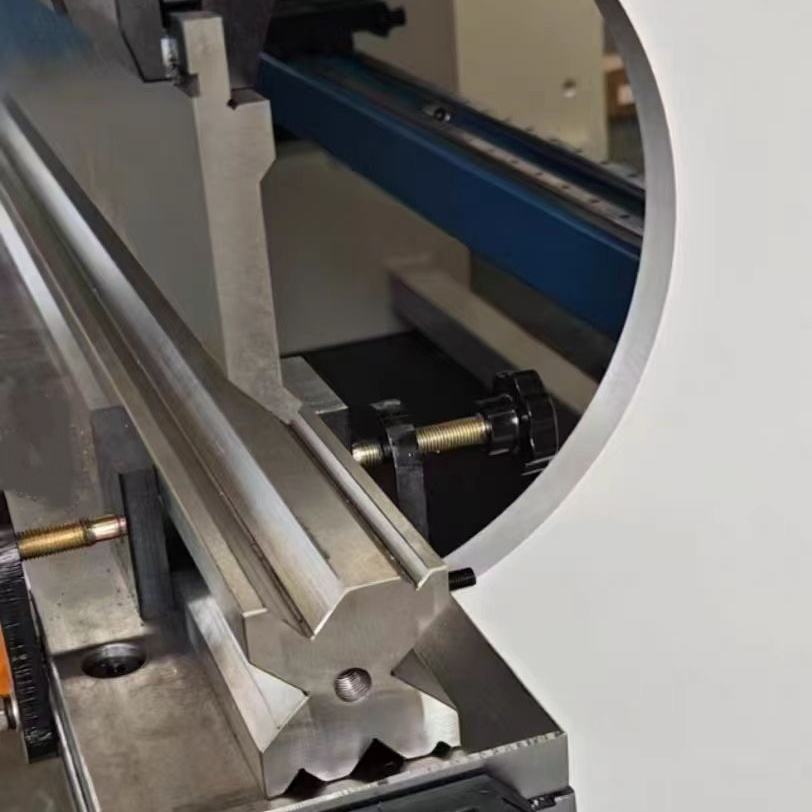

Press Brake Bending
Press brake bending is the most common forming operation in sheet metal fabrication. A CNC press brake uses a punch (upper tool) and a V-die (lower tool) to bend sheet metal to precise angles — from simple 90° brackets to complex multi-bend enclosures.
Key bending techniques include:
- Air bending — the punch partially enters the die; the final angle depends on punch travel depth. Most versatile and widely used method.
- Bottoming (coining) — the punch presses the sheet fully to the die bottom; high precision but requires more tonnage and specific tooling per angle.
- Roll bending — three rollers progressively curve the sheet to form large-radius arcs.
CNC press brakes with multi-axis back gauges can automate positioning for complex multi-bend parts. For more, see our guides on press brake types and press brake tooling.
Bending Tip: A common rule of thumb for mild steel: the V-die opening should be 8× the material thickness. For example, bending 3 mm steel requires a V-die with approximately 24 mm opening. This achieves consistent air bending results with minimal springback.
Plate Rolling
Plate rolling machines (also called roll benders or plate rolls) use three or four rollers to progressively curve sheet metal into cylindrical, conical, or curved shapes. They are essential for producing tanks, pipes, pressure vessels, and curved architectural elements.
A 3-roll plate rolling machine can handle material from 1 mm thin sheet to 100+ mm heavy plate, depending on the machine's capacity. CNC-controlled rolling machines allow precise control of the rolling radius, making it easy to produce consistent cylinders in batch production.
Deep Drawing & Stamping
Deep drawing uses a hydraulic press to push a flat sheet into a die cavity, forming cup-shaped or box-shaped parts without cutting. Common examples include kitchen sinks, automotive oil pans, and beverage cans. Stamping uses dies to punch, blank, or emboss complex features into sheet metal at high production speeds.
Both processes are typically used in high-volume production where the tooling investment is amortized over large quantities. A hydraulic press is the primary machine for these operations, offering precise force control and slow, controllable ram speed.
Joining & Assembly
After forming, separate components are joined together to create the final assembly. The main joining methods in sheet metal fabrication are:
Welding is the most permanent joining method and is used for structural applications. MIG (GMAW) welding is the most common choice for steel in fabrication shops due to its speed and ease. TIG (GTAW) welding offers higher precision and cleaner welds, ideal for stainless steel and aluminum. Spot welding applies pressure and current at discrete points to join thin sheets without adding filler material.
Rivets, bolts, screws, and self-clinching nuts are used when the assembly must be disassembled for maintenance, or when welding is not feasible (dissimilar metals, heat-sensitive components). Self-clinching hardware pressed directly into sheet metal is widely used in electronic enclosures.
Structural adhesives and epoxies can join dissimilar materials (metal to composite, metal to glass) without introducing heat. Common in automotive, aerospace, and electronics. Often used in combination with mechanical fasteners for redundancy.
Surface Finishing
The final stage of fabrication protects the metal from corrosion, improves its appearance, and may add functional properties like electrical conductivity or lubricity.
| Finishing Process | Method | Best For |
|---|---|---|
| Deburring | Grinding, tumbling, or laser deburring to remove sharp edges | All sheet metal parts — safety and quality standard |
| Powder Coating | Electrostatically applied dry powder, cured in oven at 180–200°C | Steel and aluminum — durable, wide color range, cost-effective |
| Liquid Paint | Sprayed or dipped liquid coating, air or oven cured | Complex shapes difficult to powder coat; large structural parts |
| Hot-Dip Galvanizing | Dipping fabricated parts in molten zinc bath | Outdoor structural steel — maximum corrosion protection |
| Anodizing | Electrochemical oxidation creates protective oxide layer | Aluminum only — increased hardness, corrosion resistance, decorative |
| Passivation | Acid treatment removes free iron, enhances oxide layer | Stainless steel — maximizes corrosion resistance |
How to Choose Sheet Metal Fabrication Equipment
Building or upgrading a sheet metal fabrication shop requires careful equipment selection. Here is a practical framework:
Start by mapping your most frequent operations. If 80% of your work is straight cutting and bending of rectangular parts, a shearing machine + CNC press brake combination covers most needs. If you produce complex laser-cut profiles, add a fiber laser cutter. If you produce tanks or pipes, a plate rolling machine is essential.
Equipment must be matched to the thickest material you regularly process. For press brakes, calculate required tonnage using the bending force formula. For shearing machines, select blade clearance and motor power based on maximum material thickness and tensile strength.
Sheet metal typically comes in 1220 × 2440 mm (4' × 8') or 1500 × 3000 mm (5' × 10') standard sheets. Your press brake and shearing machine working length should comfortably exceed your maximum part width. A 3200 mm (10.5') press brake handles standard sheet widths with margin.
For job shops with frequent changeovers and mixed part families, CNC control pays off quickly in reduced setup time and operator skill requirements. For simple, repetitive production of a few standard parts, manual or semi-automatic machines may be more cost-effective. Modern CNC press brakes allow programming complex multi-bend sequences in minutes via graphical interfaces.
Beyond purchase price, factor in energy consumption, tooling cost, maintenance intervals, spare parts availability, and technical support from the manufacturer. Chinese CNC press brakes from reputable manufacturers offer significant cost advantages over European or Japanese brands — typically 30–60% lower price with comparable performance for most applications.
Industries That Rely on Sheet Metal Fabrication
Sheet metal fabrication serves virtually every industry that manufactures physical products. Key sectors include:
- Automotive — body panels, chassis components, brackets, heat shields, exhaust systems
- Aerospace — fuselage skins, wing ribs, structural frames, interior panels (high precision aluminum and titanium)
- Construction & Architecture — roofing, cladding, HVAC ductwork, structural beams, staircases
- Electronics & Electrical — server racks, control panels, electrical enclosures, chassis
- HVAC — air ducts, diffusers, plenums, fan housings (galvanized or aluminum sheet)
- Industrial Machinery — machine guards, frames, covers, mounting plates, tanks
- Medical Devices — equipment housings, sterilization trays, surgical instrument frames (stainless steel)
- Food Processing — stainless steel conveyors, tanks, hoppers, work surfaces
Frequently Asked Questions
Q: What is sheet metal fabrication?
Sheet metal fabrication is the process of transforming flat metal sheets into finished parts or products through operations such as cutting, bending, forming, welding, and finishing. It is used across industries including automotive, aerospace, construction, electronics, and HVAC manufacturing.
Q: What materials are used in sheet metal fabrication?
The most common materials are mild steel (carbon steel), stainless steel, aluminum, copper, and galvanized steel. Material selection depends on strength requirements, corrosion resistance, weight, and cost. Mild steel is the most widely used due to its excellent machinability and low cost.
Q: What is the difference between shearing and laser cutting?
Shearing cuts sheet metal using two blades in a scissor action — it is fast, low-cost, and ideal for straight cuts on large volumes of flat sheet. Laser cutting uses a focused laser beam and can cut complex shapes, curves, and intricate patterns with high precision. Laser cutting is more expensive but far more versatile.
Q: How thick can sheet metal be for press brake bending?
CNC press brakes can typically bend sheet metal from 0.5 mm up to 25 mm (1 inch) thick, depending on the machine's tonnage capacity and working length. Heavy-duty press brakes can handle plate up to 40 mm or more. The maximum bendable thickness also depends on the material type and bend radius required.
Q: What finishing processes are used in sheet metal fabrication?
Common finishing processes include deburring (removing sharp edges), grinding, powder coating, liquid painting, anodizing (for aluminum), galvanizing (zinc coating for steel), passivation (for stainless steel), and electroplating. The choice depends on the required corrosion protection, appearance, and environmental conditions.
Q: How do I choose the right equipment for a sheet metal fabrication shop?
Key factors include: your primary operations (cutting, bending, or forming), material types and thicknesses, production volume, required precision, and budget. A typical sheet metal shop needs at minimum a shearing machine for cutting, a CNC press brake for bending, and optionally a laser cutting machine or plate rolling machine depending on the product range.
