A hydraulic press brake machine is a sheet metal bending machine that uses hydraulic cylinders to drive the ram and form metal between a punch and die. For most fabrication buyers in 2026, the right choice is not simply the cheapest tonnage: match the machine type, bending length, controller, back gauge axes, crowning system, tooling, and safety package to the parts you bend every week.
Quick Answer: Which Hydraulic Press Brake Machine Should You Buy?
Choose a torsion bar hydraulic press brake when the budget is tight, the parts are simple, and most jobs use similar thickness and bend length. Choose an electro-hydraulic CNC press brake when you need better angle consistency, Y1/Y2 closed-loop control, CNC crowning, multi-axis back gauge movement, or frequent job changes.
A practical starting point for many shops is a 100T/3200 mm or 160T/3200 mm hydraulic press brake machine with Y1/Y2, X, R axes and CNC crowning. Smaller workshops may use 63T/2500 mm, while heavy fabrication often needs 250T to 600T with 4000 to 6000 mm bending length. The final specification should be confirmed with the thickest regular material and the longest normal bend, not an occasional extreme part.
Hydraulic Press Brake Machine Types
The term hydraulic press brake machine covers several product levels. The frame may look similar from the outside, but the synchronization method, controller, axis feedback, and compensation system create very different performance in daily production.
| Type | How It Works | Best For | Buyer Notes |
|---|---|---|---|

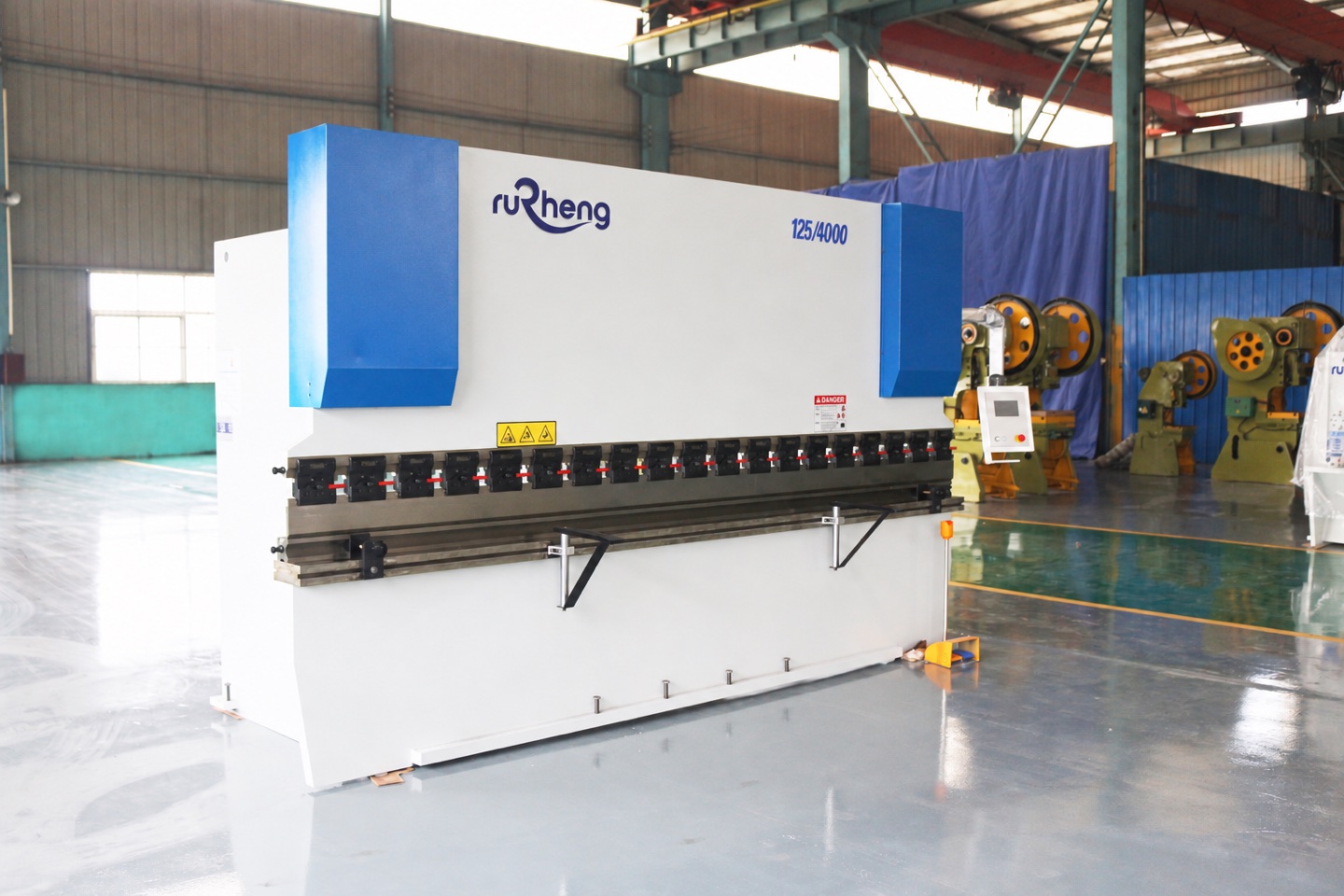

| Torsion bar hydraulic press brake | Mechanical torsion bar keeps both ram sides synchronized, usually with simpler NC control | Simple brackets, low to medium volume, stable material mix | Lower purchase cost; less flexible for off-center bending and high-accuracy work |
| Electro-hydraulic CNC press brake | Y1/Y2 cylinders are controlled by proportional valves and linear scale feedback | General fabrication, cabinets, enclosures, stainless work, repeat orders | Best all-around choice for most modern sheet metal factories |
| Heavy-duty hydraulic press brake | Larger frame, higher tonnage, longer table, stronger crowning and hydraulic package | Thick plate, structural parts, long bends, industrial equipment | Check throat depth, open height, stroke, foundation, and crane handling |
| Tandem hydraulic press brake | Two press brakes work together as one long bending system or separately as two machines | Light poles, truck bodies, elevator panels, long architectural parts | Requires synchronization, operator training, and careful floor layout |
The 10 Specifications That Actually Matter
Most quotes list many numbers. These ten specifications decide whether the hydraulic press brake machine will bend accurately, run efficiently, and stay useful as your product mix changes.
- Tonnage: the bending force available from the hydraulic system. Calculate tonnage from material thickness, tensile strength, bend length, and V-die opening.
- Bending length: the usable table length, commonly 2500, 3200, 4000, 6000, or 8000 mm. Do not buy a longer machine than your material handling can support.
- Distance between columns: limits the maximum part width that can pass between side frames.
- Stroke and open height: determine whether tall punches, hemming tools, box parts, and deep flanges can fit.
- Throat depth: controls how deep a return flange or formed part can enter behind the tooling line.
- Axis configuration: Y1/Y2 controls ram position, X/R controls back gauge depth and height, Z1/Z2 moves gauge fingers, and V controls crowning.
- Crowning system: mechanical or hydraulic compensation keeps long bends from being under-bent in the center.
- Controller: NC is enough for simple repeated work; CNC with 2D/3D programming is better for high-mix production.
- Tooling system: punch, die, clamp, V-opening, and tool height must match the material and bend profile.
- Safety package: light curtain or laser guarding, emergency stops, side/rear guards, interlocks, and lockout points should be included before purchase.
How to Size Tonnage and Bending Length
A hydraulic press brake machine is usually sold by tonnage and bending length, such as 100T/3200 mm or 220T/4000 mm. These two numbers are useful, but they are not enough. A machine that bends 6 mm mild steel over a short length may not bend the same thickness across the full table with the same V-die.
Use our press brake force calculation guide to confirm the actual tonnage. As a practical rule, choose the largest regular job, then add a 15-25% safety margin. Stainless steel and high-strength steel need higher force than mild steel, while aluminum usually needs less force but more attention to marking and springback.
| Application | Common Machine Range | Typical Material | Recommended Product Fit |
|---|---|---|---|
| Small cabinets and brackets | 40T to 80T / 1600 to 2500 mm | 0.8-3 mm mild steel or aluminum | Torsion bar or compact CNC press brake |
| General sheet metal fabrication | 100T to 160T / 3200 mm | 1.5-6 mm mild steel, stainless, galvanized sheet | Electro-hydraulic CNC press brake |
| Industrial equipment panels | 200T to 320T / 3200 to 4000 mm | 4-10 mm plate and longer bends | CNC press brake with crowning and stronger back gauge |
| Heavy fabrication and long parts | 400T to 1000T+ / 4000 to 8000 mm | Thick plate, structural parts, long workpieces | Heavy-duty or tandem press brake |
NC vs CNC Hydraulic Press Brake: What Is the Difference?
An NC hydraulic press brake can position the back gauge and control the ram with simpler numerical settings. It is useful when the shop bends repetitive parts and the operator already knows the tooling. A CNC hydraulic press brake stores part programs, calculates bend steps, controls multiple axes, and often supports graphical programming.
If your team changes jobs several times per day, bends many part numbers, or needs repeatable first-piece setup, CNC usually saves more money than it costs. Pair this section with our press brake controller guide and CNC press brake programming basics before choosing the controller.
Why Crowning Matters on Hydraulic Press Brakes
During bending, the upper beam and lower table deflect under load. Without compensation, a long part may be accurate near the ends but open in the middle. Crowning corrects this deflection by slightly adjusting the bed or lower tooling support.
Manual mechanical crowning can work for stable jobs. CNC crowning is better for mixed thickness, long bends, stainless steel, and operators who need repeatability from stored programs. For more detail, see the press brake crowning system guide.
Tooling and V-Die Selection
The machine cannot perform well with the wrong tooling. For air bending mild steel, many shops start with a V-die opening about 8 times the material thickness. Thicker plate, larger inside radius requirements, short flanges, and high-strength material may need a different opening.
Ask the supplier to quote the machine and tooling together. Include standard punches, multi-V dies or single-V dies, quick clamps, hemming tools, gooseneck punches, and any special tooling for box parts. Our press brake tooling guide explains how to match punches and dies to real parts.
Choose the Machine Around Workflow, Not Only Price
Two hydraulic press brake machines with the same tonnage can create very different production results. A lower-cost machine may be acceptable if every job is simple. But for high-mix fabrication, the setup workflow often matters more than the machine nameplate.
- Material flow: can operators load the sheet safely, support long parts, and remove finished parts without rehandling?
- Program flow: can engineers prepare programs offline, transfer them by network or USB, and keep tool libraries consistent?
- Quality flow: does the machine support angle correction, crowning, first-piece inspection, and repeatable back gauge positions?
- Maintenance flow: can the shop access hydraulic oil, filters, valves, electrical cabinet, linear scales, and lubrication points?
Supplier Questions Before You Pay a Deposit
Before buying a hydraulic press brake machine, ask the supplier to answer these questions in writing. Good suppliers should connect the answer to your drawings, not only to a standard catalog.
- What material, tensile strength, thickness, and bending length is the quoted tonnage based on?
- Is the machine torsion bar synchronization or electro-hydraulic Y1/Y2 closed-loop control?
- Which controller model, axis configuration, and software options are included?
- Is crowning manual, motorized, hydraulic CNC, or not included?
- What punch, die, clamp, and V-openings are supplied as standard?
- What are the stroke, open height, throat depth, and distance between columns?
- Which safety devices are included, and how do they comply with your local requirements?
- What installation, training, spare parts, and remote support are included after shipment?
Safety and Compliance References
Safety should be reviewed before purchase, not after installation. OSHA's powered press brake machine guarding guidance highlights point-of-operation risk, while 29 CFR 1910.212 covers general machine guarding requirements.
For international buyers, local regulations may differ, but the purchasing checklist should still ask for guarding method, emergency stops, interlocks, safety distance, operator training, and lockout procedure documentation.
Common Buying Mistakes
- Buying by tonnage only and ignoring V-die opening, material strength, and bend length.
- Choosing a long machine without planning sheet support, floor space, crane access, or operator handling.
- Paying for a premium controller while selecting only a basic back gauge and manual crowning.
- Forgetting tooling cost, shipping, foundation, oil, installation, and training in the total budget.
- Comparing torsion bar and electro-hydraulic CNC machines as if they were the same product level.
Hydraulic Press Brake Machine FAQ
What is a hydraulic press brake machine?
A hydraulic press brake machine is a sheet metal bending machine that uses hydraulic cylinders to move the ram and press a punch into a die. It bends sheet metal and plate into angles, channels, boxes, brackets, cabinets, and structural parts.
What is the difference between torsion bar and electro-hydraulic press brakes?
A torsion bar press brake uses a mechanical bar to synchronize both sides of the ram. An electro-hydraulic CNC press brake uses independent Y1/Y2 control with feedback from linear scales, giving better accuracy, off-center bending ability, and CNC compensation.
How much tonnage do I need for a hydraulic press brake?
Tonnage depends on material thickness, tensile strength, bend length, and V-die opening. A 100T/3200 mm machine is common for general sheet metal, but stainless steel, thick plate, and full-length bends may require a larger machine.
Is CNC worth it on a hydraulic press brake machine?
CNC is worth it when you change jobs often, need repeatable angles, use multiple back gauge axes, or want stored programs. For simple repeated parts, an NC torsion bar machine may be enough.
What should be included in a hydraulic press brake quote?
A complete quote should include tonnage, bending length, controller, axes, crowning, tooling, safety devices, hydraulic and electrical brands, installation requirements, warranty, training, spare parts, and shipping terms.
Conclusion: Match the Press Brake to Real Production
The best hydraulic press brake machine is the one that bends your regular parts accurately, safely, and efficiently. Tonnage and bending length are only the starting point; the real buying decision includes synchronization, controller, axes, crowning, tooling, safety, and support.
If you are comparing torsion bar, electro-hydraulic CNC, heavy-duty, or tandem press brakes, send Rucheng your material list, drawings, bend length, tolerance, and production volume. Our engineering team can recommend a machine configuration that fits your actual factory workflow.
