Fiber laser cutting parameters should be set from the material, thickness and required edge quality, then fine-tuned by sample cuts. Start with the manufacturer parameter table, then adjust cutting speed, laser power, assist gas pressure, nozzle diameter, focus position and pierce settings together. A faster speed is not always better if it creates dross, taper, rough edges or unstable piercing.
Quick Answer: Which Parameters Matter Most?
The main fiber laser cutting parameters are laser power, cutting speed, assist gas type, gas pressure, nozzle diameter, focus position, pierce height, pierce time, cut height and acceleration. Material thickness decides the starting range. Edge quality and production cost decide the final value.
For thin sheet, speed, focus stability and clean dry gas usually matter most. For medium and thick plate, gas pressure, nozzle size, piercing strategy, focus position and heat control become more important. For stainless steel and aluminum, nitrogen or clean air parameters should prevent oxidation and dross. For carbon steel, oxygen parameters may use lower pressure and slower speed because the oxidation reaction adds heat.
What Are Fiber Laser Cutting Parameters?
Fiber laser cutting parameters are the CNC and process settings that control how the laser beam, assist gas and motion system remove material along the cutting path. A parameter table is a starting recipe, not a fixed law, because material grade, surface condition, nozzle wear, lens cleanliness, gas purity and machine acceleration all affect the cut.
A fiber laser cutting machine focuses high-density laser energy into a narrow kerf. The assist gas removes molten metal, protects the cutting head and controls oxidation. The CNC controller then coordinates speed, height, piercing and corner motion so the cut remains stable from lead-in to final contour.
Fiber Laser Cutting Parameters Chart
The table below gives practical starting logic for common sheet metal work. Exact values must be confirmed with your machine supplier and by sample cuts, especially on reflective material, coated sheet or tight tolerance parts.
| Material and thickness | Power range | Gas and pressure logic | Focus and speed logic | Main quality check |
|---|---|---|---|---|
| 0.5-2 mm carbon steel | 1-3 kW is usually enough; higher power raises speed | Air or oxygen; air needs clean dry pressure, oxygen uses lower pressure | Higher speed, small nozzle, focus near surface or slightly negative | Burr, yellow edge, small hole roundness and heat marks |
| 3-6 mm carbon steel | 3-6 kW for general sheet production | Oxygen for economy; nitrogen when bright edge is required | Reduce speed as thickness rises; tune focus for stable kerf | Bottom dross, taper, oxide layer and corner burning |
| 8-20 mm carbon steel | 6-12 kW or higher depending on throughput | Oxygen is common; pressure stability and pierce control are critical | Slower speed, larger nozzle, controlled pierce and heat input | Pierce splash, edge roughness, slag, bevel and part distortion |
| 0.8-6 mm stainless steel | 3-6 kW covers many cabinet and enclosure jobs | Nitrogen or clean air; nitrogen gives brighter oxide-free edges | Fast enough to avoid overheating, with focus tuned for dross-free cut | Color change, bottom burr, weld cleanliness and edge brightness |
| 6-16 mm stainless steel | 6-12 kW or higher for production speed | High-flow nitrogen; supply system must handle peak flow | Moderate speed, larger nozzle and stable negative focus | Dross, edge striation, gas starvation and heat tint |
| 1-8 mm aluminum | 3-12 kW depending on alloy, reflectivity and volume | Nitrogen or clean dry air; avoid wet or oily compressed air | Use stable focus and avoid excessive heat buildup | Melt adhesion, rough edge, reflection alarms and surface marks |
How Speed and Power Work Together
Laser power supplies energy, while cutting speed controls how long that energy stays in one area. If speed is too high for the thickness, the beam cannot fully clear the kerf and the part shows bottom dross, uncut sections or rough striations. If speed is too low, heat builds up and causes wider kerf, rounded corners, discoloration or excessive oxidation.
More power only helps when the rest of the system can support it. The cutting head, gas supply, nozzle, bed, exhaust, chiller, control system and downstream bending or welding capacity must match the laser source. This is why a 12kW machine should be evaluated as a production system, not just a higher number on a brochure.
- Increase speed when the top edge burns, the heat affected zone is too wide or the cut looks over-melted.
- Reduce speed when the part is not fully cut, bottom dross is heavy or small holes fail.
- Increase power carefully when the machine cannot maintain speed through the material thickness.
- Reduce power or pulse settings when thin sheet corners overheat or pierce marks are too large.

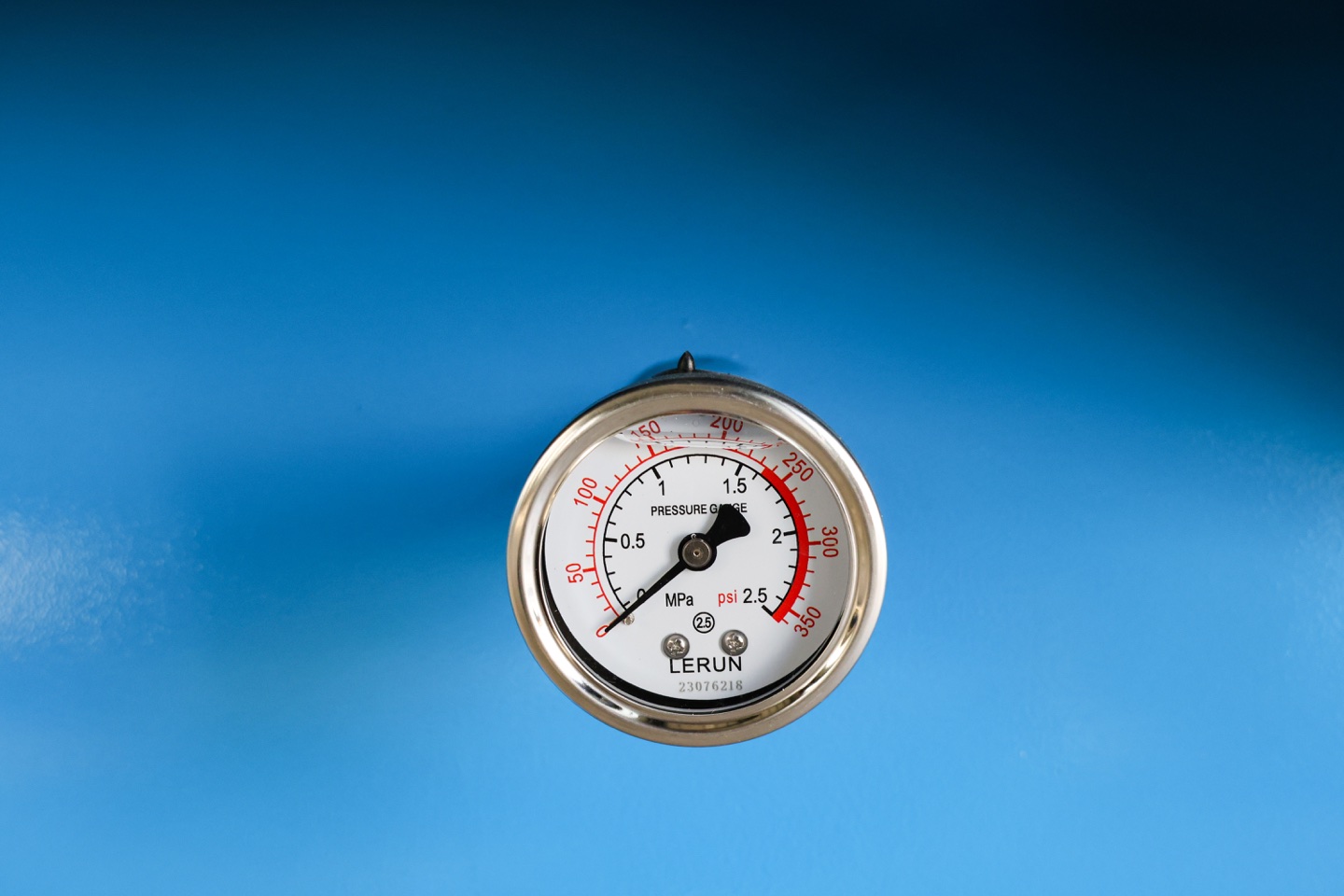

Assist Gas Pressure, Purity and Flow
Assist gas pressure removes molten material from the kerf and changes the chemistry of the edge. Nitrogen and compressed air are mainly mechanical ejecting gases. Oxygen also reacts with hot carbon steel, adding heat and allowing thick mild steel to cut with lower gas flow. The correct gas pressure depends on material thickness, nozzle diameter, power and edge requirement.
Pressure alone does not guarantee flow. A small pipe, undersized regulator, weak compressor, wet dryer, empty cylinder bank or small nitrogen generator can cause pressure drop during piercing and long nests. For production, check pressure at the machine under real cutting load, not only at the gas source.
- Nitrogen: use for stainless steel, aluminum and bright oxide-free edges; plan for high flow on high-power machines.
- Oxygen: use for carbon steel where oxide edge is acceptable; tune pressure carefully to avoid burning and rough edges.
- Compressed air: use for cost-sensitive thin sheet only when the air is clean, dry and stable.
- Purity: stainless and aluminum quality can drop quickly if nitrogen purity or compressed-air dryness is poor.

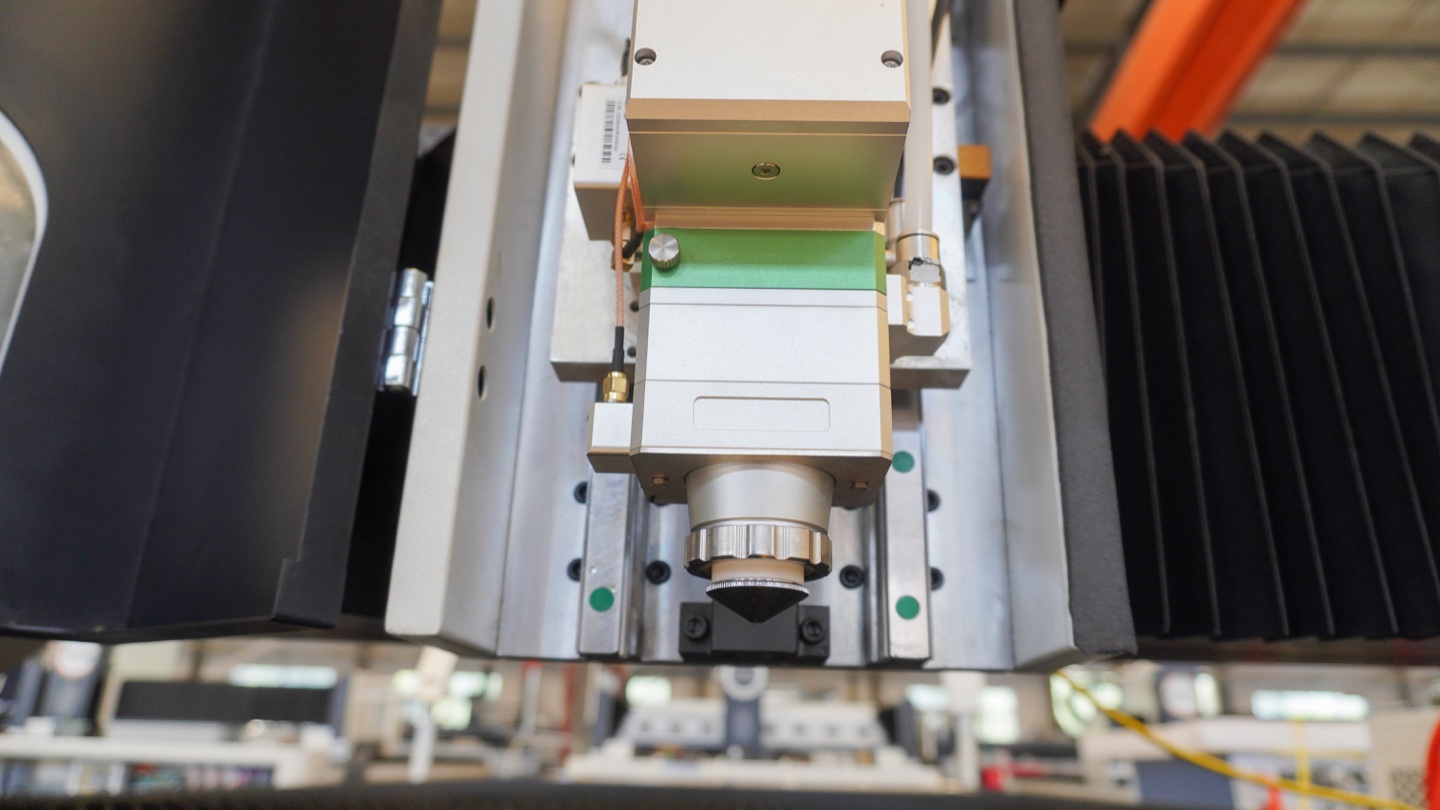

Nozzle Diameter and Focus Position
The nozzle shapes gas flow into the kerf. Thin sheet usually uses a smaller nozzle to keep a tight gas stream and reduce consumption. Thick plate often needs a larger nozzle to deliver enough flow and tolerate wider kerf behavior. A damaged or off-center nozzle can make a good parameter table fail immediately.
Focus position controls where the highest beam energy sits relative to the material surface. A focus near the surface may suit thin sheet. A negative focus, where the focal point sits below the top surface, is often used for thicker material to support deeper energy penetration and smoother kerf evacuation. Auto-focus cutting heads reduce setup time, but operators still need approved focus values for each material.
- Check nozzle roundness and centering before blaming software parameters.
- Use a nozzle diameter that matches gas flow demand, material thickness and kerf width.
- Clean or replace protective lenses when focus stability changes unexpectedly.
- Record focus position together with gas, nozzle and speed in the same process sheet.
Piercing, Lead-In and Small Hole Parameters
Piercing is often the hardest part of thick-plate cutting. If pierce power, pierce time, gas pressure or pierce height is wrong, molten material can splash back onto the protective lens or leave a crater that damages the first part of the contour. Thick carbon steel may need staged piercing, lower initial power or a longer pierce delay.
Small holes need special attention because the machine cannot always use the same speed as long straight contours. A practical rule is to test any hole diameter close to material thickness. If roundness, taper or dross is unacceptable, use lower speed, adjusted lead-in, pulse cutting or drilling/punching for the critical hole.
- Use longer lead-ins for thick plate when the pierce crater must stay away from the finished edge.
- Reduce corner speed when the edge burns or small internal profiles melt.
- Check pierce splash direction and protective lens condition during first-piece validation.
- Save separate parameters for holes, slots and outer contours when the controller supports it.
Troubleshooting Parameter Defects
| Observed defect | Likely parameter cause | First correction to try |
|---|---|---|
| Heavy bottom dross | Speed too high or low, gas pressure unstable, focus incorrect | Adjust speed in small steps, verify pressure under load and re-check focus |
| Top edge burning | Speed too slow, oxygen reaction too strong or focus too high | Increase speed, reduce oxygen effect or adjust focus downward |
| Rough vertical striations | Insufficient power, unstable gas flow, bad nozzle or wrong focus | Inspect nozzle and lens, stabilize gas and tune focus before changing power |
| Small holes not round | Contour speed too fast, lead-in wrong or heat buildup excessive | Use small-hole parameters, lower speed and change lead-in strategy |
| Pierce splash on lens | Pierce height, pierce pressure or delay not matched to thickness | Raise pierce height, stage the pierce and inspect protective glass |
| Yellow or oily edge with air cutting | Wet compressed air, oil carryover or poor filtration | Service dryer and filters, check dew point and test nitrogen comparison |

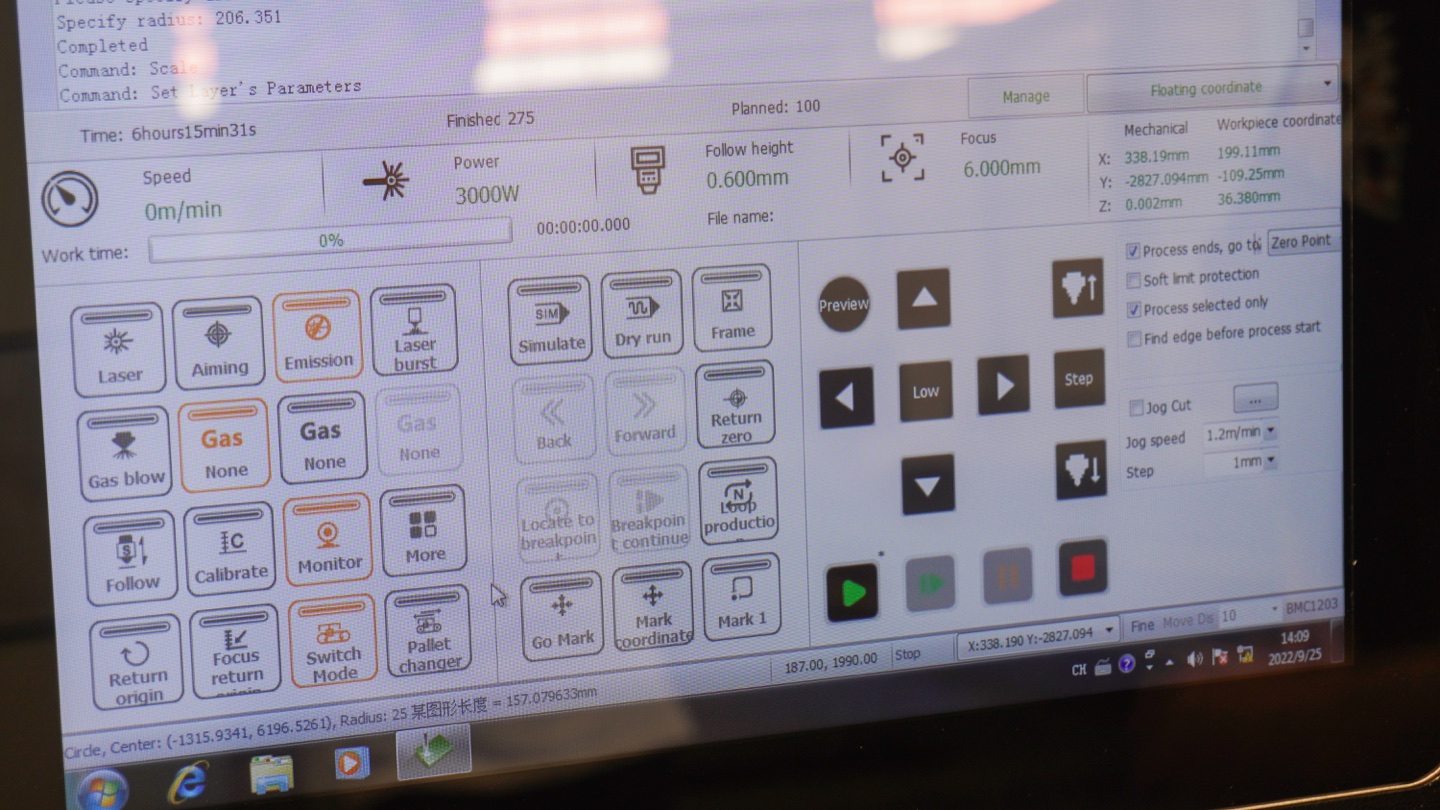

How to Validate a Parameter Table Before Production
A parameter chart should be validated with your material, not only with supplier demonstration coupons. Use the actual sheet grade, coating, film, surface rust level, nest density and part geometry. A perfect straight test line can fail when the production nest includes small holes, close contours and repeated piercing.
- Cut a test coupon with straight lines, corners, circles, slots and small holes.
- Inspect top edge, bottom dross, taper, edge roughness, heat color and hole roundness.
- Bend, weld or powder coat a sample part if the cut edge will go downstream.
- Record accepted speed, power, gas, pressure, nozzle, focus, pierce and cut height.
- Lock approved parameters in the CNC library and train operators not to overwrite them without review.
Buyer Checklist: Ask for More Than a Speed Chart
When comparing fiber laser cutting machines, ask the supplier to prove the parameter system, not only the maximum thickness claim. A useful quotation should show how the machine will cut your normal parts every day.
- Request cutting parameters for your top five materials and thicknesses.
- Ask whether the machine includes auto-focus, capacitive height control and collision protection.
- Confirm gas supply requirements for nitrogen, oxygen and compressed air at peak flow.
- Check recommended nozzle sizes, protective lens life and consumable cost.
- Ask for sample parts with small holes, tight corners and your required edge quality.
- Confirm whether the controller supports separate parameters for piercing, small holes and contours.
- Verify chiller capacity, exhaust system and bed design for continuous high-power cutting.
- Keep parameter training and remote service support in the purchase contract.
Common Fiber Laser Parameter Mistakes
- Copying another factory parameter table without checking material grade, nozzle condition or gas quality.
- Changing speed only, when the real cause is wet air, unstable nitrogen flow or a dirty protective lens.
- Running maximum power on thin sheet and creating heat marks, wider kerf and corner burn.
- Ignoring pierce parameters until the protective lens fails repeatedly.
- Choosing a laser by maximum thickness but not checking daily cutting speed and gas cost.
- Allowing every operator to save different parameters without a controlled process library.
Useful Related Guides
For general process background, see the laser cutting overview and TWI explanation of what laser cutting is. For shop safety, review applicable local laser safety rules before operating high-power cutting equipment.
For Rucheng selection topics, read our laser power selection guide, assist gas guide, laser cutting cost guide, maintenance checklist and single-table fiber laser machine page.
Fiber Laser Cutting Parameters FAQ
What is the most important fiber laser cutting parameter?
There is no single most important parameter. Cutting speed, laser power, gas type, gas pressure, nozzle diameter and focus position work together. If one setting is wrong, the cut may show dross, roughness, taper or unstable piercing even when the other values look correct.
How do I choose laser cutting speed?
Start from the manufacturer chart for the exact material and thickness, then run sample cuts. If the cut does not go through or has heavy bottom dross, reduce speed or check gas and focus. If the edge burns or the kerf is too wide, increase speed or reduce heat input.
What focus position is best for fiber laser cutting?
Thin sheet often uses focus near the surface, while thicker material often uses a negative focus below the top surface. The exact value depends on power, material, nozzle and gas. Save approved focus values in the CNC parameter library after sample validation.
Why does a good parameter chart still produce bad cuts?
A chart can fail if material grade changes, gas pressure drops, compressed air is wet, the nozzle is damaged, the protective lens is dirty or the cutting head is not centered. Check machine condition and gas quality before making large parameter changes.
Can compressed air use the same parameters as nitrogen?
No. Air contains oxygen and depends heavily on compressor dryness and filtration, so edge color, dross and speed can differ from nitrogen. Test air cutting separately and save a dedicated parameter set instead of copying nitrogen values.
Should I buy higher laser power to avoid parameter problems?
Higher power does not fix poor parameters, weak gas supply or dirty optics. It can improve speed and thickness capacity only when the cutting head, gas system, chiller, exhaust and operator process control are also strong enough.
Conclusion: Build a Parameter Library, Not Just a Speed Chart
A fiber laser cutting parameters chart is useful only when it becomes a controlled production library. The best shops record material, thickness, power, speed, gas, pressure, nozzle, focus, pierce and quality result for every approved job. That reduces scrap and makes production repeatable across shifts.
